Buying tips:

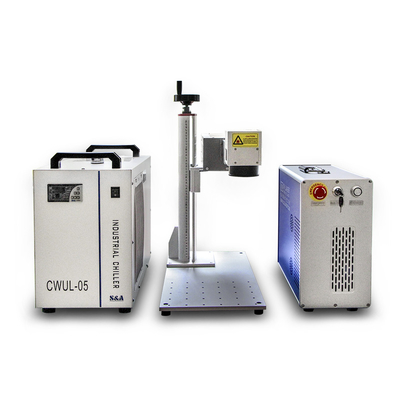

Ultraviolet laser marking machine belongs to a series of laser processing technology. It uses 355nm UV laser as the light source.
The machine uses third-order intracavity frequency doubling technology to compare with infrared laser (pulsed fiber laser), 355 ultraviolet focusing spot. Small, can greatly reduce the mechanical deformation of the material and has little influence on the processing heat, because it is mainly used for superfine marking, engraving, cutting and the like.
It is especially suitable for applications such as marking of food and pharmaceutical packaging materials, micropores, high-speed division of glass materials, and complex graphic cutting of wafer wafers.
Main features of UV laser marking machine:
Laser (light source): 355 nm UV laser
Air-cooled device, small size, 20,000 hours maintenance-free (theoretical 20,000 hours of service life).
More than 5W power requires water cooling, distilled water or pure water.
The focused spot is extremely small, and the processing heat affected zone is small (cold light), making the material heat-receiving area smaller. Not susceptible to heat deformation, ultra-fine marking, special material marking.
Low cost of use, better beam quality, high efficiency, low power consumption, more energy saving and environmental protection.
Can be applied to high-end market, ultra-fine marking environment, cosmetics, pharmaceuticals, LCD liquid crystal, electronic components, communication equipment, food and medicine packaging, glass division, electronic components, metal jewelry marking.
Item No. |
OV VU-3, OV UV-5, OV UV-10 |
Laser output power |
≥3W@30KHZ |
Machine Power |
<1KW |
Laser wavelength |
355nm |
Laser Repetition Frequency |
≤50KHz |
Standard marking area |
110*110mm |
Marking area |
Option 70*70mm/150*150mm/175*175mm/200*200mm/300*300mm/400*400mm/Customer OEM |
Marking depth |
0.01-0.3mm(Adjustable according to material) |
Marking speed |
≤8000mm/s |
Repeatability accuracy |
±0.01mm |
Beam quality(Square meter) |
<2 |
Positioning accuracy |
≤0.02mm |
Minimum character |
0.2mm |
Minimum line width |
0.015-0.1mm |
Minimum distance of XYZ worktable |
150*100*300mm(option 300*200*300mm) |
Marking and positioning method |
Red Light Indicator Location |
Modulation frequency |
20KHZ-80KHZ |
Laser medium |
Nd3+,Yag |
Laser type |
YAG Semiconductor End Pump |
Laser Repetition Frequency |
≤50KHz |
Power |
220V/50Hz/20A, 380V/50Hz/20A |
Laser continuous working time |
24H |
Cooling mode |
Air cooling |
Machine size |
880*850*700mm(Reference) |
Control system |
OVlaser |
File Support Format |
BMP, AI, GIF, JPEG, PCX, TGA, TIFF, PLT, CDR, DMG, DXF ect. |
Applicable to all metal materials and most non-metallic materials: coding, punching, laser tearing, stripping, stripping, rust removal, deep carving, fine micromachining, anodizing, oxygen-permeable conductive surface treatment And other applications;
Main applications: film etching, glass marking, material micromachining, wafer cutting, laser rapid prototyping, etc.
1. Machinery industry: hardware tools, clutches, bearings, pistons, piston rings, steel pipes, steel plates, gears, sensors, shafts, etc.;
2, electronic components: such as capacitors, inductors, circuit boards, integrated circuits, automotive oil system, nylon, cable and wire, keyboard, etc.;
3. Instrumentation: control panel, measuring instrument, medical equipment, aviation parts, etc.;
4, household appliances, lamps, product packaging, stationery, brand-name panels, label signs, cosmetics, color paper, various paint products, cigarettes, handicrafts, etc.;
5, tableware, food, gold, jewelry, handicrafts, ceramics, building materials, sanitary ware, office supplies, etc.;
We strongly encourage customers to pay through Alibaba trade assurance order. On the one hand, customers will pay more safely, on the other hand, they will be more secure for future after-sales services.
If you think our machine is very good, please give us a good evaluation of five stars. Thank you.
Q1: How can I get the best machine for me?
You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.
Q2: This is the first time I use this kind of machine, is it easy to operate?
We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software.Or we can talk by phone, email or other contact ways.
Q3: If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under "normal use".
Q4: This model is not suitable for me, do you have more models available?
Yes, we can supply many models, such as separate portable, table type, enclosed type, mini portable, fly type etc.
Replacement of some part based on your need. The above are most popular. If it can not meet your requirement, then tell us. We have the ability to make specially according to your requirement!
Q5:What's the guarantee, in case the machine breaks down?
The machine has two years' guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client's feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
Q6:How about the documents after shipment?
After shipment, we'll send all original documents to you by DHL, TNT etc., including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
Q7:How long is the delivery time?
For standard machines, it would be 5-7 days; For non-standard machines and customized machines according to client's specific requirements, it would be 15 to 30 days.
Q8:How's the payment?
Telegraphic Transfer(T/T). Alibaba trade assurance order(T/T, Credit card, E-checking ect).
Q9:Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB and CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
Q10:How is the packing?
There are 3 layers of package:
waterproof thickening plastic bag, foam to protect from shaking, solid export wooden case.
